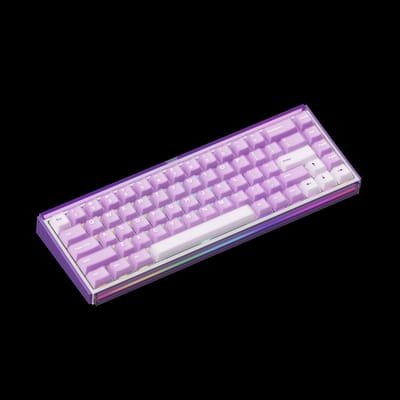

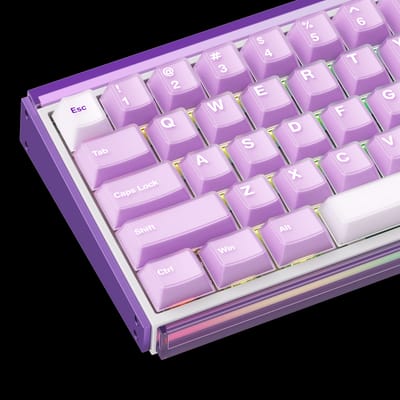

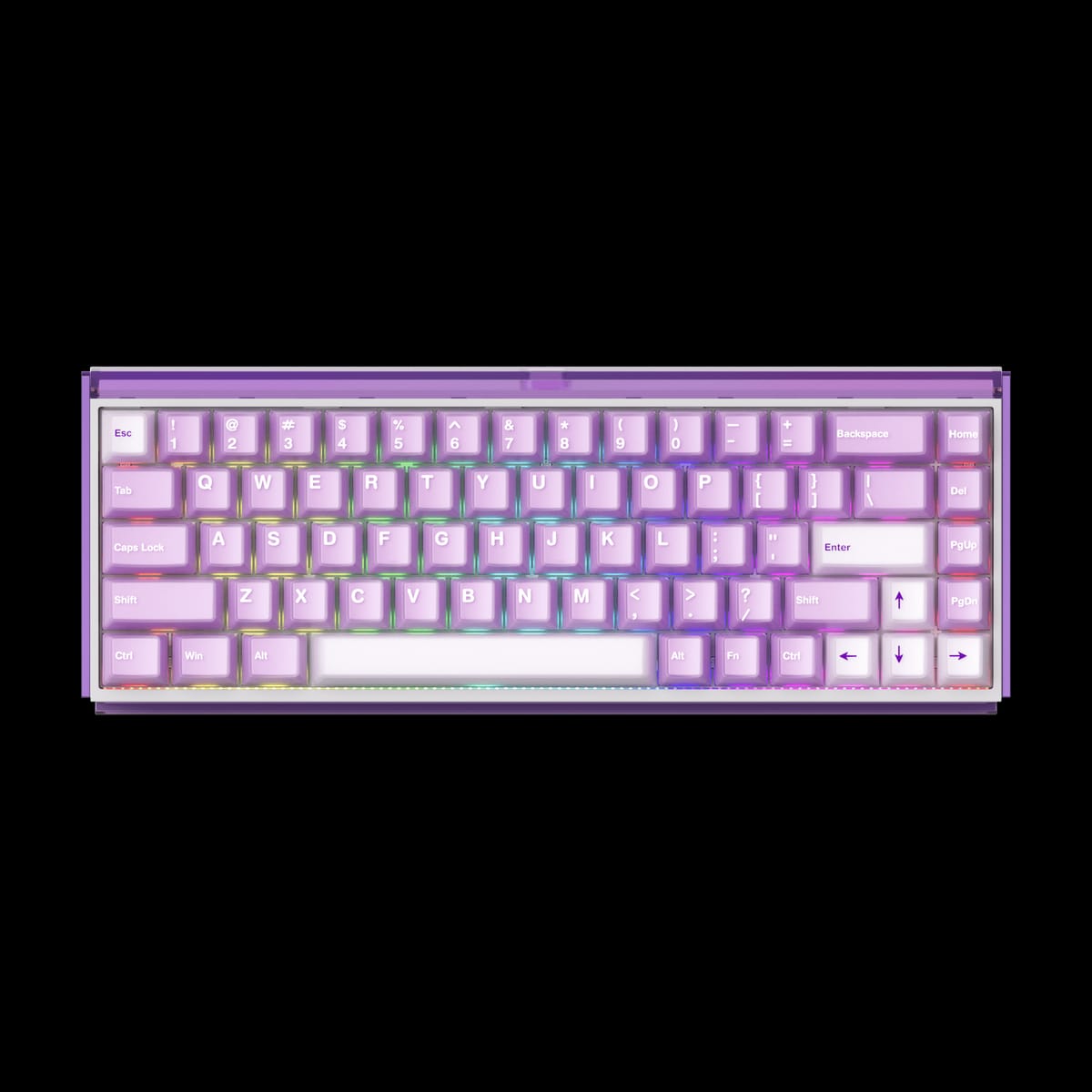

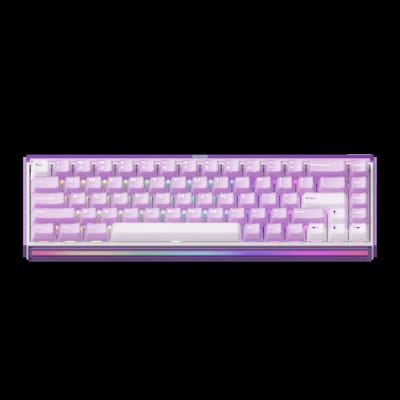

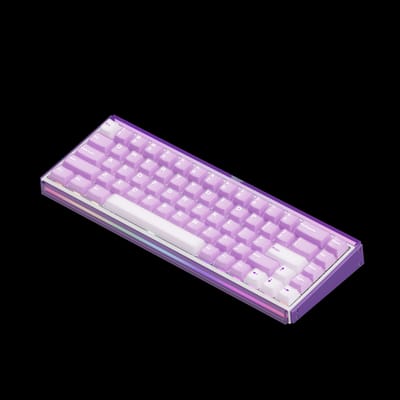

Akko RAY68 HE
- 68 keys
- Hot-swap
- Tray mount
- Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle)
Where to buy
Specifications
- Form factor
- 65%
- Key count
- 68
- Mounting style
- Tray mount
- Hot-swap
- Yes
- Socket
- Magnetic (Hall-Effect) Socket
- Polling rate
- 8000 Hz
- RGB
- Yes
- QMK
- No
- VIA
- No
- Layouts
- ANSI
- Connectivity
- Wired USB-C, Bluetooth (5.0+), 2.4GHz wireless (dongle)
- Battery
- 8000 mAh
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Mounting styles explained.
Sound on a build is driven by the combination of keyboard chassis, switches, keycaps and stabilizers rather than this component alone.
For a breakdown of how each piece contributes, see Switches 101 and Stabilizers 101.
Force-curve data applies to switches — see the spec tab for the switch this component is paired with.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Hot-swap
Magnetic (Hall-Effect) Socket sockets
Switches can be swapped without soldering.
- Layouts supported
ANSI
Magnetic-only hot-swap sockets — NOT compatible with standard MX mechanical switches (TECH SPECS: 'Mechanical Switches Supported: Not Supported'). Cross-compatible with major Hall-Effect magnetic switches; ships with Akko AstroAim Magnetic Switch pre-installed. RT Accuracy 0.01mm-2.00mm; Actuation Range 0.1mm-3.40mm; advertised 0.005mm rapid-trigger precision and up to 32K scan rate. Software features (Custom Actuation, Mod-Tap, Toggle Key, Dynamic Keystroke, Keys Remapping, Customizable RGB, SOCD/Snap Key, Rapid Trigger, RT Stabilizer) via Akko Cloud & Web Driver only — no QMK/VIA. Wireless SKU adds Bluetooth 5.0 + 2.4GHz dongle (8000Hz polling in wired/2.4GHz, 125Hz in Bluetooth) and 8000mAh battery; wired SKU is USB-C only.
Side-by-side comparison
| Spec | AkkoAkko 3061S | AkkoAkko 3061S HE | AkkoAkko 3068 | ||
|---|---|---|---|---|---|
| Form factor | 65% | TKL | 60% | 60% | 65% |
| Keys | 68 | 87 | 61 | 61 | 68 |
| Hot-swap | Yes | No | Yes | Yes | No |
| Connectivity | Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle) | — | Wired USB-C | Wired USB-C | Wired USB-C / Bluetooth (5.0+) |
| Score | — | — | — | — | — |
| From | — | $99.00 | — | — | — |
Need more detail? Open full comparison →
