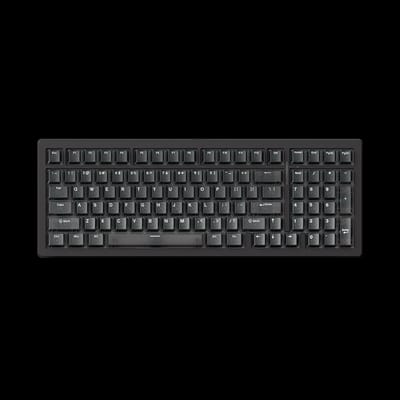

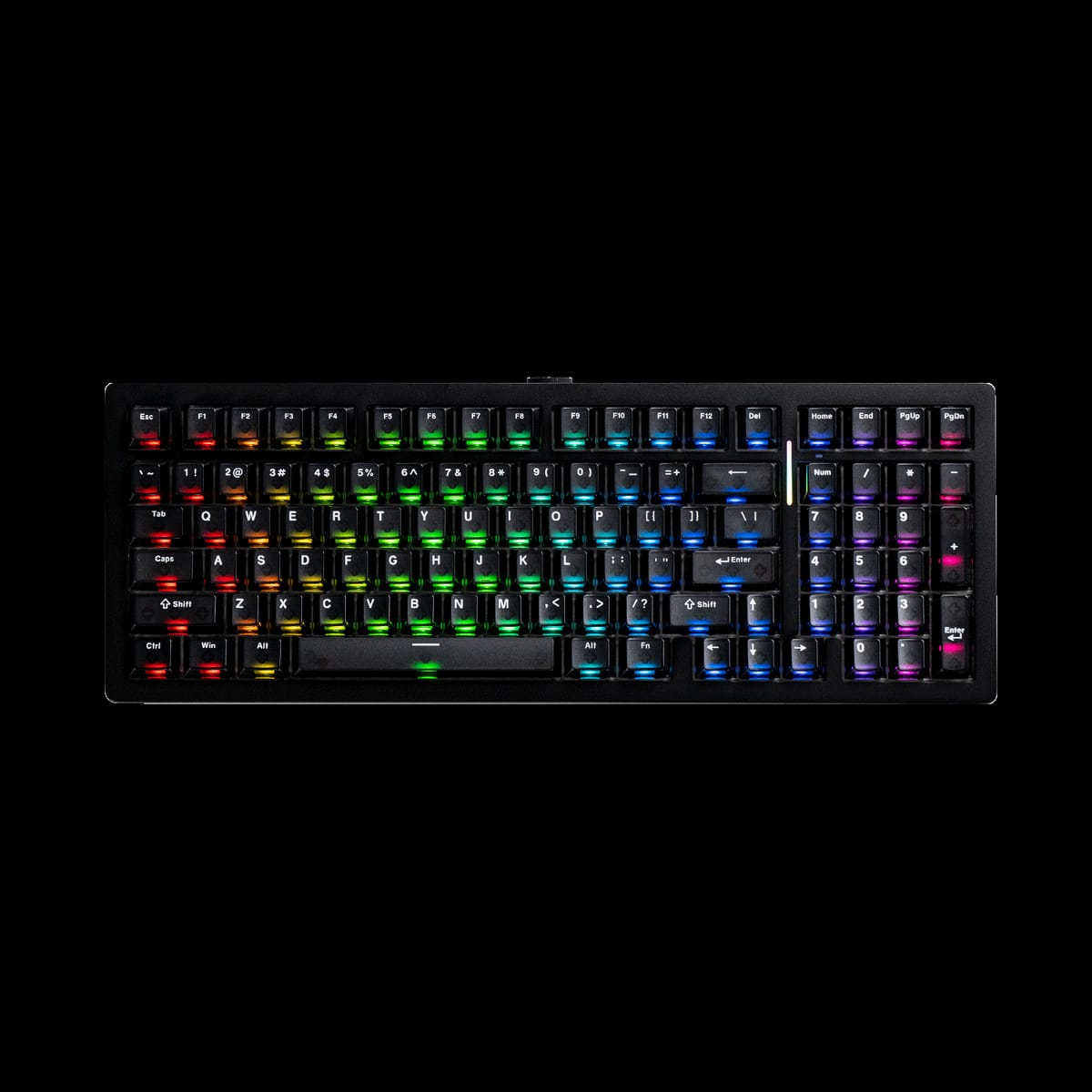

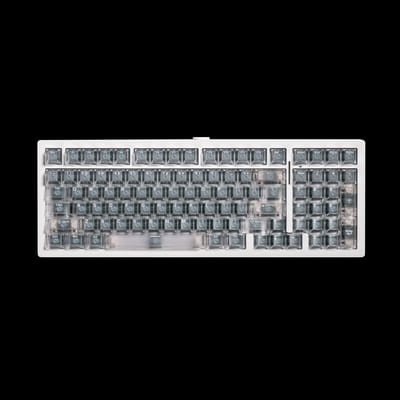

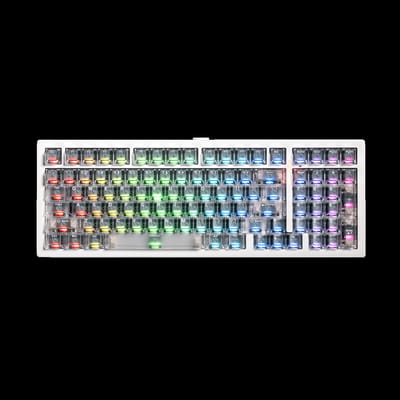

MonsGeek M2 V5 HE
- 96 keys
- Hot-swap
- Gasket mount
- Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle)
Where to buy
Specifications
- Form factor
- 1800
- Key count
- 96
- Mounting style
- Gasket mount
- Weight
- 1600 g
- Hot-swap
- Yes
- Socket
- Magnetic (Hall-Effect) Socket
- Polling rate
- 8000 Hz
- RGB
- Yes
- QMK
- No
- VIA
- No
- Layouts
- ANSI
- Pins supported
- 3
- Connectivity
- Wired USB-C, Bluetooth (5.0+), 2.4GHz wireless (dongle)
- Battery
- 8000 mAh
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Mounting styles explained.
Sound on a build is driven by the combination of keyboard chassis, switches, keycaps and stabilizers rather than this component alone.
For a breakdown of how each piece contributes, see Switches 101 and Stabilizers 101.
Force-curve data applies to switches — see the spec tab for the switch this component is paired with.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Hot-swap
Magnetic (Hall-Effect) Socket sockets
Switches can be swapped without soldering.
- Switch pins accepted
3 pin
Both plastic-leg and bare-pin MX-style switches.
- Layouts supported
ANSI
1800-compact (96-key) gasket-mount aluminum custom keyboard with a Hall-effect (HE) magnetic-switch PCB — accepts ONLY HE-compatible magnetic switches (3-pin HE stem); standard MX-style mechanical switches will NOT fit the proprietary magnetic sockets. Ships pre-installed with Akko AstroAim Hall-effect magnetic switches. HE-specific features include 0.005 mm-precision rapid trigger, per-key adjustable actuation distance (0.005 mm step), mod-tap, and toggle-key macros — all configured via the proprietary MonsGeek Driver (also marketed as MonsGeek Cloud Driver) for Windows / macOS / Web. QMK and VIA are NOT supported on this PCB revision — HE analog firmware is incompatible with VIA's digital keymap model. Tri-mode connectivity: wired USB-C, Bluetooth (multi-host), and 2.4GHz wireless dongle, with an 8000 mAh battery. 8K polling rate on wired and 2.4GHz modes (PCB upgrade vs the original M2 kit's 1K). South-facing RGB with 500 Hz LED refresh and Alpha-channel integration. Includes PC shine-through Cherry-profile double-shot side-printed keycaps and Akko plate-mount stabilizers.
Side-by-side comparison
| Spec | AkkoAkko 3061S | AkkoAkko 3061S HE | AkkoAkko 3068 | ||
|---|---|---|---|---|---|
| Form factor | 1800 | TKL | 60% | 60% | 65% |
| Keys | 96 | 87 | 61 | 61 | 68 |
| Hot-swap | Yes | No | Yes | Yes | No |
| Connectivity | Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle) | — | Wired USB-C | Wired USB-C | Wired USB-C / Bluetooth (5.0+) |
| Score | — | — | — | — | — |
| From | — | $99.00 | — | — | — |
