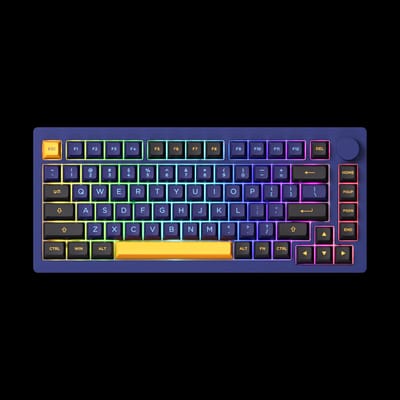

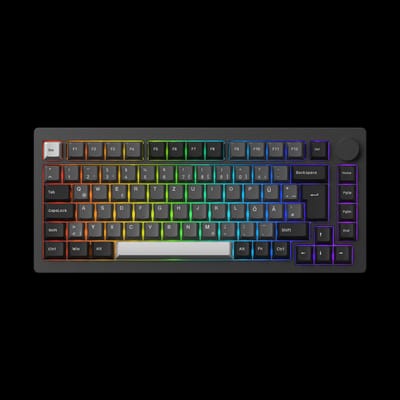

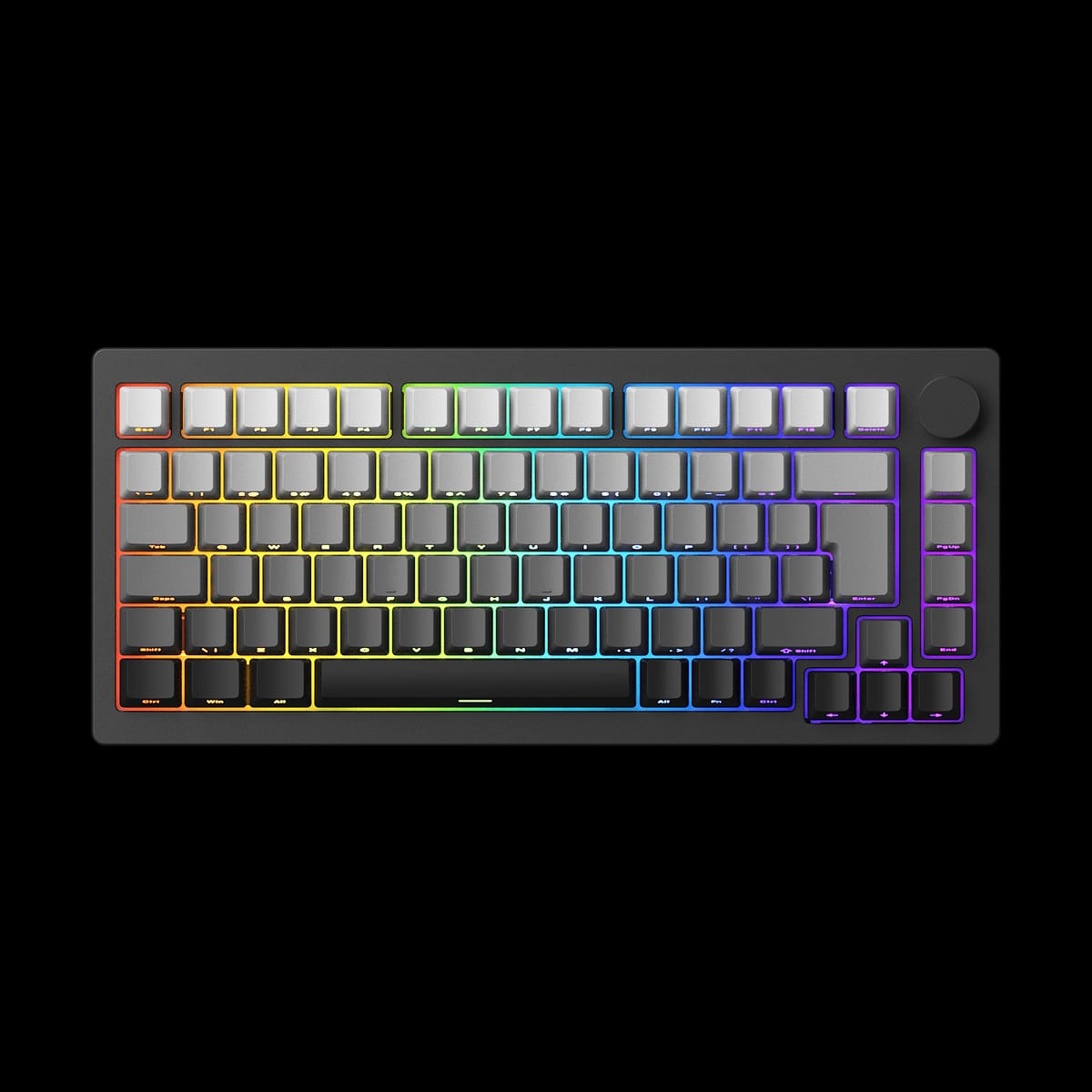

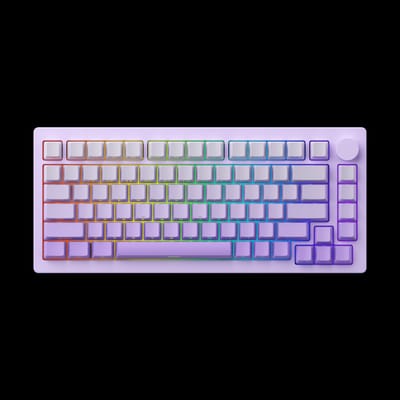

MonsGeek M1W V3 HE-SP
- 82 keys
- Hot-swap
- Gasket mount
- Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle)
Where to buy
Specifications
- Form factor
- 75%
- Key count
- 82
- Mounting style
- Gasket mount
- Weight
- 2000 g
- Hot-swap
- Yes
- Socket
- Magnetic (Hall-Effect) Socket
- Polling rate
- 8000 Hz
- RGB
- Yes
- QMK
- No
- VIA
- No
- Layouts
- ANSI
- Pins supported
- 3
- Connectivity
- Wired USB-C, Bluetooth (5.0+), 2.4GHz wireless (dongle)
- Battery
- 6000 mAh
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Mounting styles explained.
Sound on a build is driven by the combination of keyboard chassis, switches, keycaps and stabilizers rather than this component alone.
For a breakdown of how each piece contributes, see Switches 101 and Stabilizers 101.
Force-curve data applies to switches — see the spec tab for the switch this component is paired with.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Hot-swap
Magnetic (Hall-Effect) Socket sockets
Switches can be swapped without soldering.
- Switch pins accepted
3 pin
Both plastic-leg and bare-pin MX-style switches.
- Layouts supported
ANSI
75% (82-key) gasket-mount aluminum custom keyboard with the V3 Hall-effect (HE) magnetic-switch PCB and the 'SP' (Shine-Print) PBT shine-through keycap design — this is the newest-generation HE-SP variant of the M1W wireless line, distinct from the V2-era M1W HE-SP sibling (different polling rate, different battery, different PCB firmware). The PCB has proprietary HE-only sockets; standard MX-style 5-pin mechanical switches will NOT fit, only 3-pin HE-stem magnetic switches and 3-pin MX switches per body copy ('magnetic switches and is also backward compatible with 3-pin mechanical switches'). Ships pre-installed with Akko Cream Yellow Magnetic switches (single switch option across all 6 variants). HE-specific features (Rapid Trigger, Dynamic Keystrokes, Mod-Tap, Toggle Key, Bottom Deadzone Setting) are configured exclusively via the proprietary 'MonsGeek Driver' (also known as the MonsGeek Cloud Driver). QMK and VIA are NOT supported on this PCB revision — HE analog firmware is incompatible with VIA's digital keymap model. Tri-mode wireless connectivity: Bluetooth 5.0 (with 3-device pairing memory), 2.4 GHz dongle, and USB-C wired. Polling rate 8000 Hz on wired USB-C and 1000 Hz on 2.4 GHz wireless (Bluetooth polling not stated). Battery 6000 mAh. South-facing per-key RGB. Includes PBT double-shot side-printed gradient shine-through OEM-profile keycaps and pre-installed plate-mount stabilizers. Available in 5 colorways (Dark Night, Horizon Blue, Lilac Purple, Moonlight White, Black & Silver) with US-ANSI on all and ISO available on Dark Night and Black & Silver. The Black & Silver colorway diverges from the other variants: it ships with Cherry-profile keycaps (instead of OEM) and standard double-shot legends (instead of gradient shine-through side-printed).
Side-by-side comparison
| Spec | AkkoAkko 3061S | AkkoAkko 3061S HE | AkkoAkko 3068 | ||
|---|---|---|---|---|---|
| Form factor | 75% | TKL | 60% | 60% | 65% |
| Keys | 82 | 87 | 61 | 61 | 68 |
| Hot-swap | Yes | No | Yes | Yes | No |
| Connectivity | Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle) | — | Wired USB-C | Wired USB-C | Wired USB-C / Bluetooth (5.0+) |
| Score | — | — | — | — | — |
| From | $173.00 | $99.00 | — | — | — |
