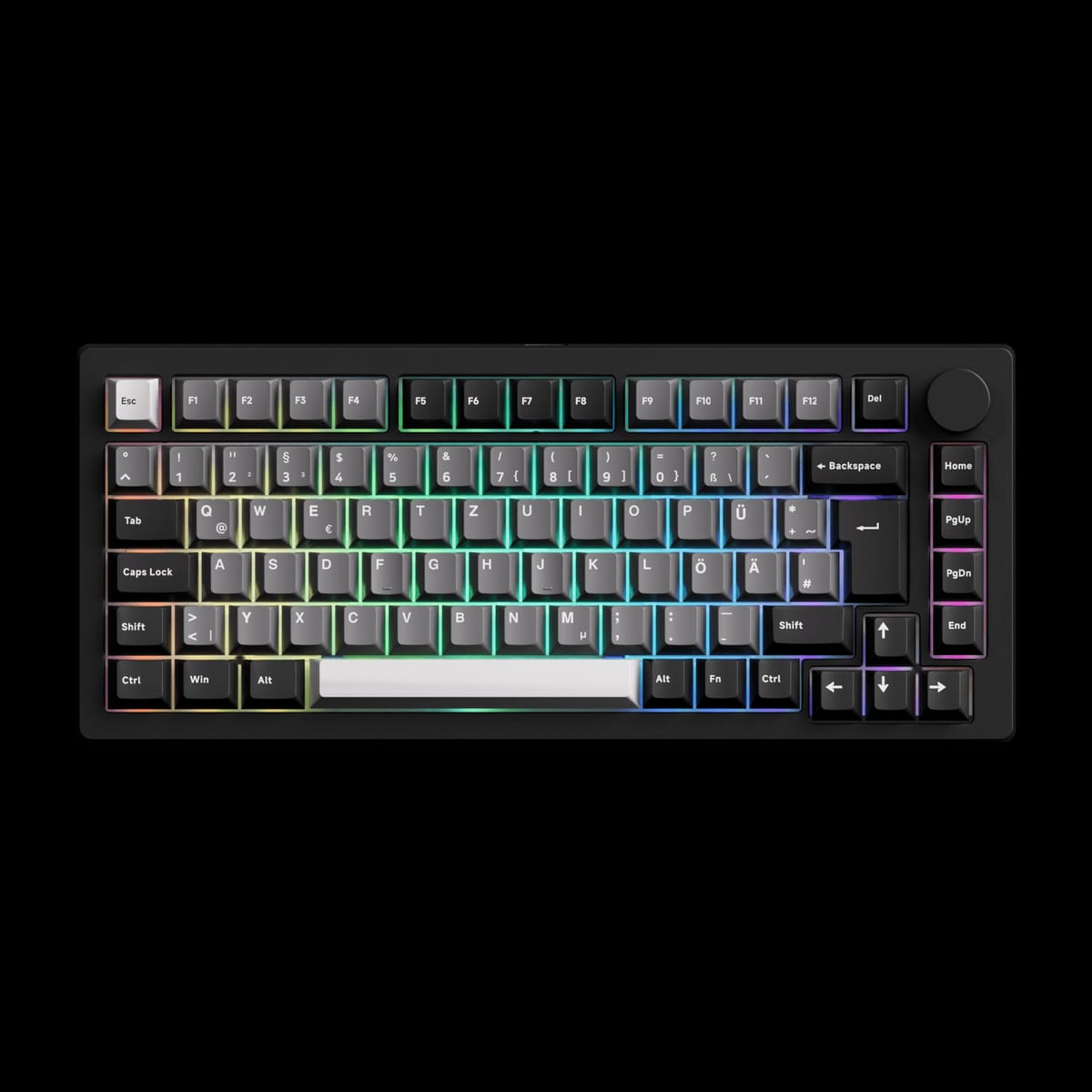

MonsGeek M1 V5 VIA
- 83 keys
- Hot-swap
- Gasket mount
- Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle)
Where to buy
Specifications
- Form factor
- 75%
- Key count
- 83
- Mounting style
- Gasket mount
- Weight
- 1600 g
- Hot-swap
- Yes
- Polling rate
- 1000 Hz
- RGB
- Yes
- QMK
- No
- VIA
- Yes
- Layouts
- ANSI, ISO UK, ISO DE, ISO Nordic
- Pins supported
- 3, 5
- Connectivity
- Wired USB-C, Bluetooth (5.0+), 2.4GHz wireless (dongle)
- Battery
- 8000 mAh
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Mounting styles explained.
Sound on a build is driven by the combination of keyboard chassis, switches, keycaps and stabilizers rather than this component alone.
For a breakdown of how each piece contributes, see Switches 101 and Stabilizers 101.
Force-curve data applies to switches — see the spec tab for the switch this component is paired with.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Hot-swap
Hot-swap PCB
Switches can be swapped without soldering.
- Switch pins accepted
3 / 5 pin
Both plastic-leg and bare-pin MX-style switches.
- Layouts supported
ANSI, ISO UK, ISO DE, ISO Nordic
75% gasket-mount aluminum custom keyboard with standard MX 5-pin hotswap PCB — accepts any 3-pin or 5-pin MX-style mechanical switch (Cherry, Gateron, Kailh, Akko, Outemu, etc.). Configured via VIA (no proprietary driver needed) — this is the only M1 V5 PCB revision with VIA firmware support; sibling V5 HE and V5 TMR magnetic-switch revisions are NOT VIA-compatible. Tri-mode connectivity: wired USB-C, Bluetooth, and 2.4GHz wireless dongle (1000 Hz polling on wired/2.4GHz; 125 Hz on Bluetooth) with 8000 mAh battery. RGB south-facing per-key backlight. Ships pre-installed with one of four to five Akko switch options (Akko Rosewood, V3 Piano Pro, V3 Creamy Purple Pro, Creamy Cyan; US-ANSI variant also offers Akko Botany). Includes PBT double-shot side-printed shine-through keycaps and Akko plate-mount stabilizers. Available in ANSI (82 keys) and ISO-DE/UK/Nordic (83 keys) layouts. Plate is polycarbonate; PCB is 1.2 mm.
Side-by-side comparison
| Spec | AkkoAkko 3061S | AkkoAkko 3061S HE | AkkoAkko 3068 | ||
|---|---|---|---|---|---|
| Form factor | 75% | TKL | 60% | 60% | 65% |
| Keys | 83 | 87 | 61 | 61 | 68 |
| Hot-swap | Yes | No | Yes | Yes | No |
| Connectivity | Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle) | — | Wired USB-C | Wired USB-C | Wired USB-C / Bluetooth (5.0+) |
| Score | — | — | — | — | — |
| From | — | $99.00 | — | — | — |
Need more detail? Open full comparison →
