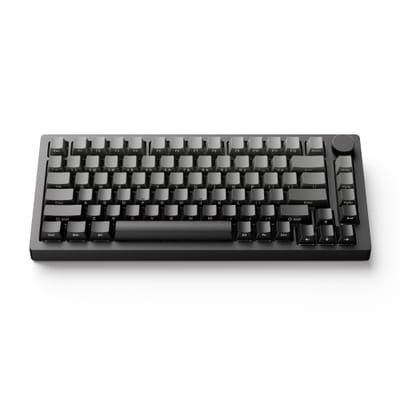

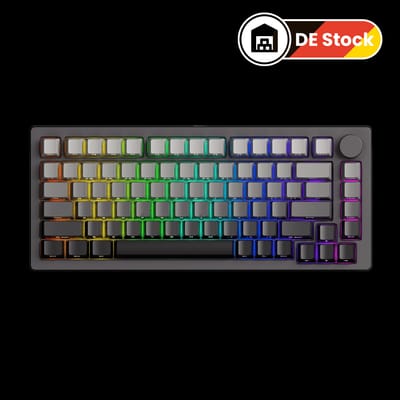

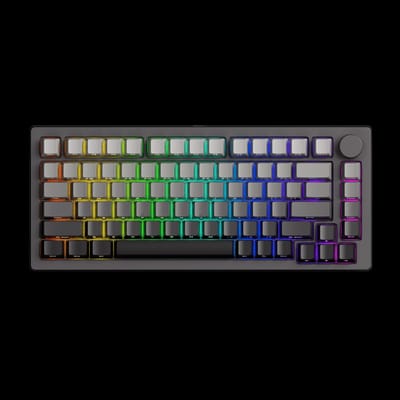

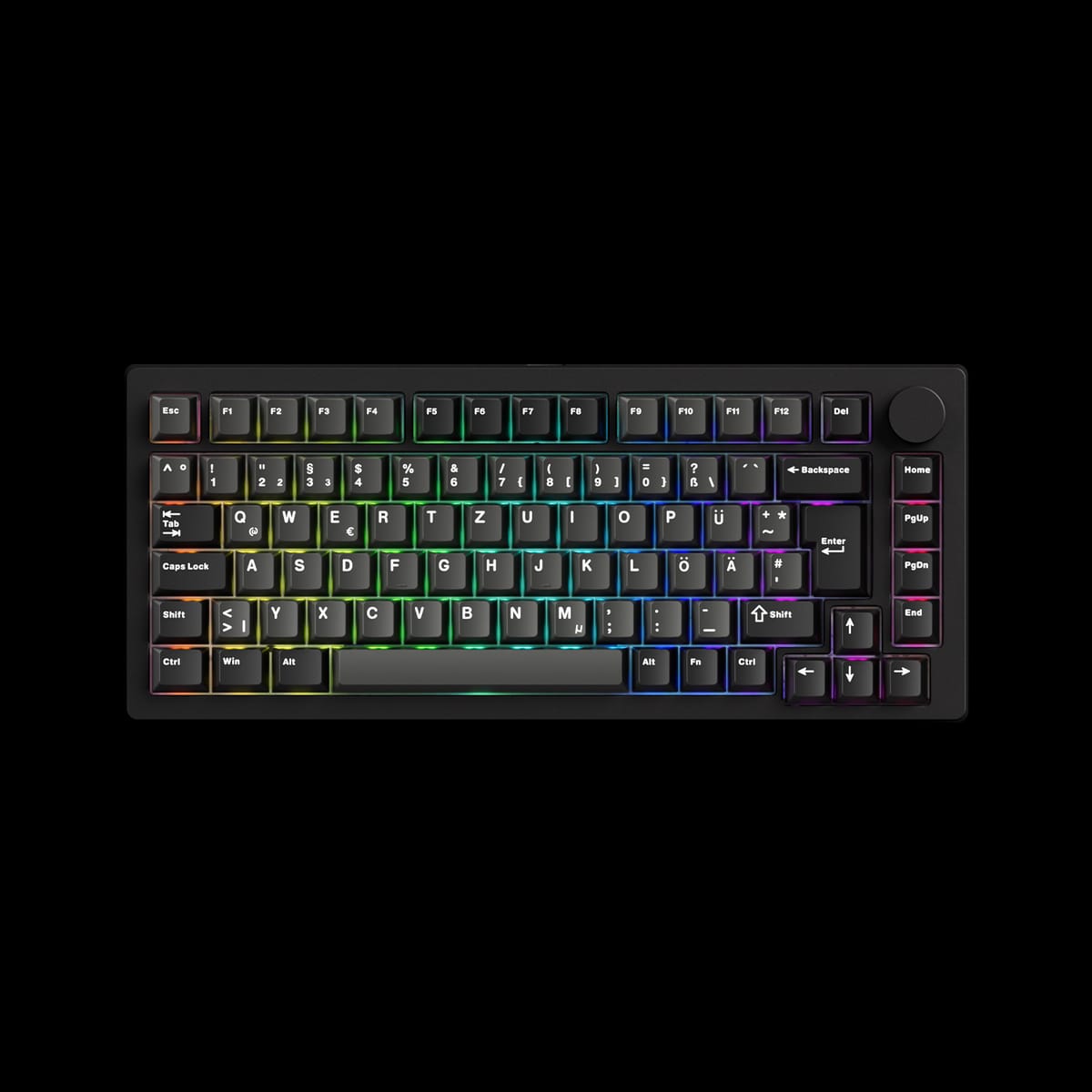

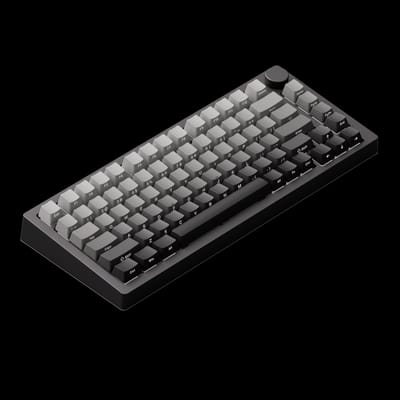

MonsGeek M1 V5 TMR
- 82 keys
- Hot-swap
- Gasket mount
- Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle)
Where to buy
Specifications
- Form factor
- 75%
- Key count
- 82
- Mounting style
- Gasket mount
- Weight
- 1600 g
- Hot-swap
- Yes
- Socket
- Magnetic (Hall-Effect) Socket
- Polling rate
- 1000 Hz
- RGB
- Yes
- QMK
- No
- VIA
- No
- Layouts
- ANSI, ISO DE
- Pins supported
- 3
- Connectivity
- Wired USB-C, Bluetooth (5.0+), 2.4GHz wireless (dongle)
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Mounting styles explained.
Sound on a build is driven by the combination of keyboard chassis, switches, keycaps and stabilizers rather than this component alone.
For a breakdown of how each piece contributes, see Switches 101 and Stabilizers 101.
Force-curve data applies to switches — see the spec tab for the switch this component is paired with.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Hot-swap
Magnetic (Hall-Effect) Socket sockets
Switches can be swapped without soldering.
- Switch pins accepted
3 pin
Both plastic-leg and bare-pin MX-style switches.
- Layouts supported
ANSI, ISO DE
75% gasket-mount aluminum custom keyboard with a TMR (Tunneling Magnetoresistance) magnetic-switch PCB — accepts ONLY TMR-compatible magnetic switches (3-pin magnetic stem); standard MX-style mechanical switches will NOT fit the proprietary magnetic sockets. TMR is a distinct magnetic-sensing technology from Hall-effect (HE) — both are magnetic, but TMR sensors deliver higher precision and lower latency. Ships pre-installed with one of three pre-installed Akko TMR magnetic switches (variant-dependent): Akko AstroAim, Akko Astrolink, or Akko Glare. Magnetic-switch features include rapid trigger and software-adjustable actuation point, configured via the proprietary 'MonsGeek Cloud Driver' (Win/macOS/Web). QMK and VIA are NOT supported on this PCB revision — analog magnetic-switch firmware is incompatible with VIA's digital keymap model. Tri-mode connectivity: wired USB-C, Bluetooth, and 2.4GHz wireless dongle (1000 Hz polling on wired/2.4G; 125 Hz on Bluetooth). Includes PBT double-shot side-printed shine-through keycaps and Akko plate-mount stabilizers. Available in five colorways across US-ANSI and ISO-DE layouts.
