Where to buy
Specifications
- Form factor
- 65%
- Key count
- 68
- Mounting style
- Tray mount
- Typing angle
- 7°
- Hot-swap
- Yes
- RGB
- Yes
- QMK
- Yes
- VIA
- Yes
- Layouts
- ANSI
- Pins supported
- 3, 5
- Connectivity
- Wired USB-C
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Mounting styles explained.
Sound on a build is driven by the combination of keyboard chassis, switches, keycaps and stabilizers rather than this component alone.
For a breakdown of how each piece contributes, see Switches 101 and Stabilizers 101.
Force-curve data applies to switches — see the spec tab for the switch this component is paired with.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Hot-swap
Hot-swap PCB
Switches can be swapped without soldering.
- Switch pins accepted
3 / 5 pin
Both plastic-leg and bare-pin MX-style switches.
- Layouts supported
ANSI

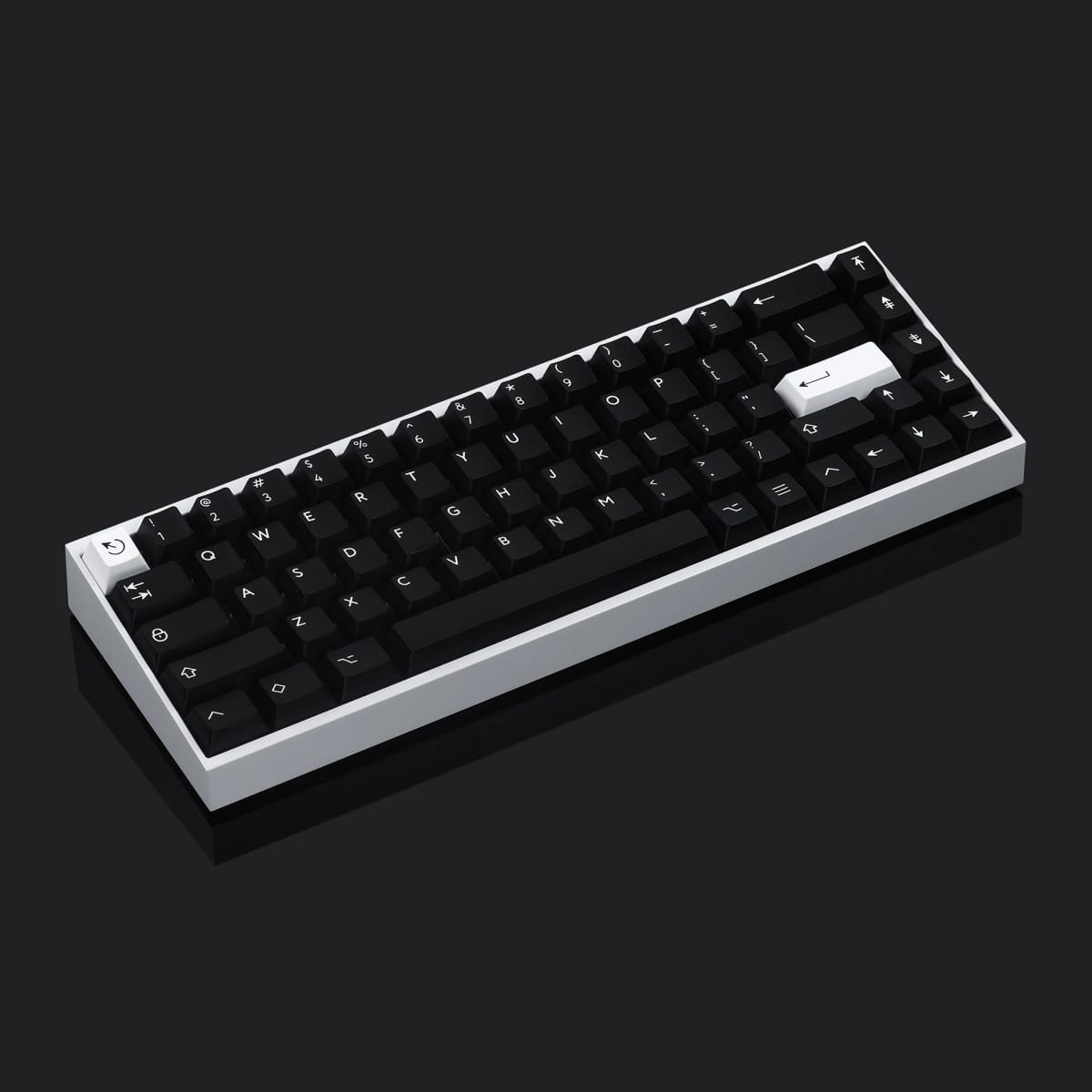

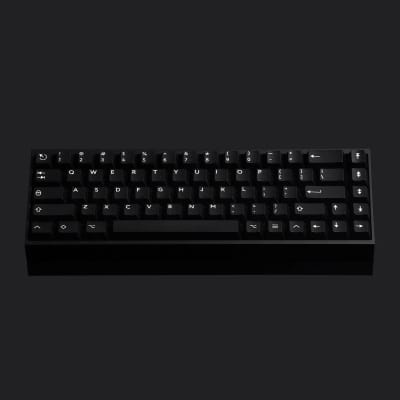

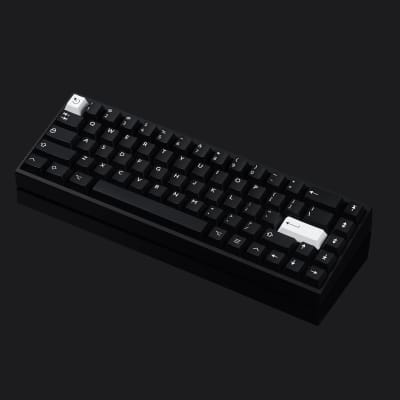

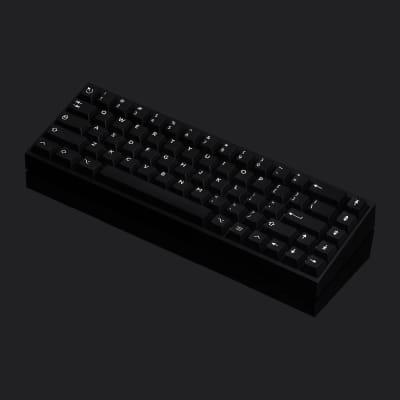

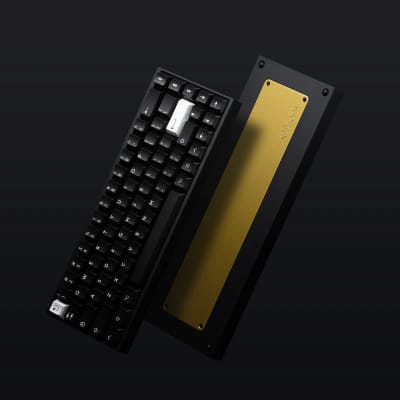

65% ANSI aluminum tray-mount custom DIY kit — the iconic budget-friendly CNC aluminum kit that defined the entry-tier custom market c.2019-2023. CNC-machined 6063 aluminum case with brass weight, 7° typing angle. Currently shipped with KBDfans DZ65RGB V3 hot-swap PCB (per-key south-facing RGB, USB Type-C, QMK + VIA support, daughterboard); the original line also offered a soldered DZ65 PCB variant. Plate is purchased separately — supports Polycarbonate, Aluminum, Brass, or Carbon Fiber. Includes Cherry screw-in stabilizers and PCB+case foam. Switches and keycaps NOT included (DIY kit). Wired-only over USB-C, no wireless. Canonical Tofu line predecessor of Tofu65 2.0 (top mount) and Tofu65 3.0.
Side-by-side comparison
| Spec | AkkoAkko 3061S | AkkoAkko 3061S HE | AkkoAkko 3068 | ||
|---|---|---|---|---|---|
| Form factor | 65% | TKL | 60% | 60% | 65% |
| Keys | 68 | 87 | 61 | 61 | 68 |
| Hot-swap | Yes | No | Yes | Yes | No |
| Connectivity | Wired USB-C | — | Wired USB-C | Wired USB-C | Wired USB-C / Bluetooth (5.0+) |
| Score | — | — | — | — | — |
| From | — | $99.00 | — | — | — |
Need more detail? Open full comparison →
