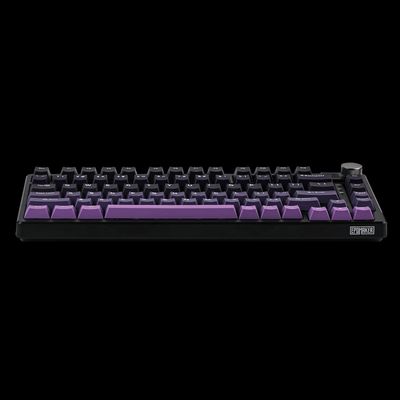

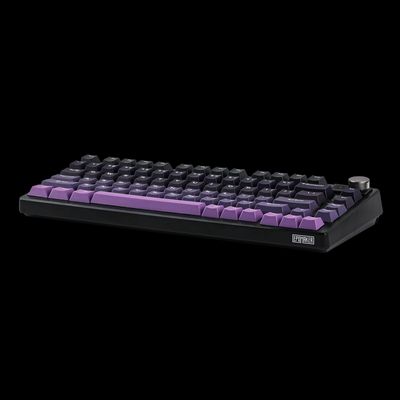

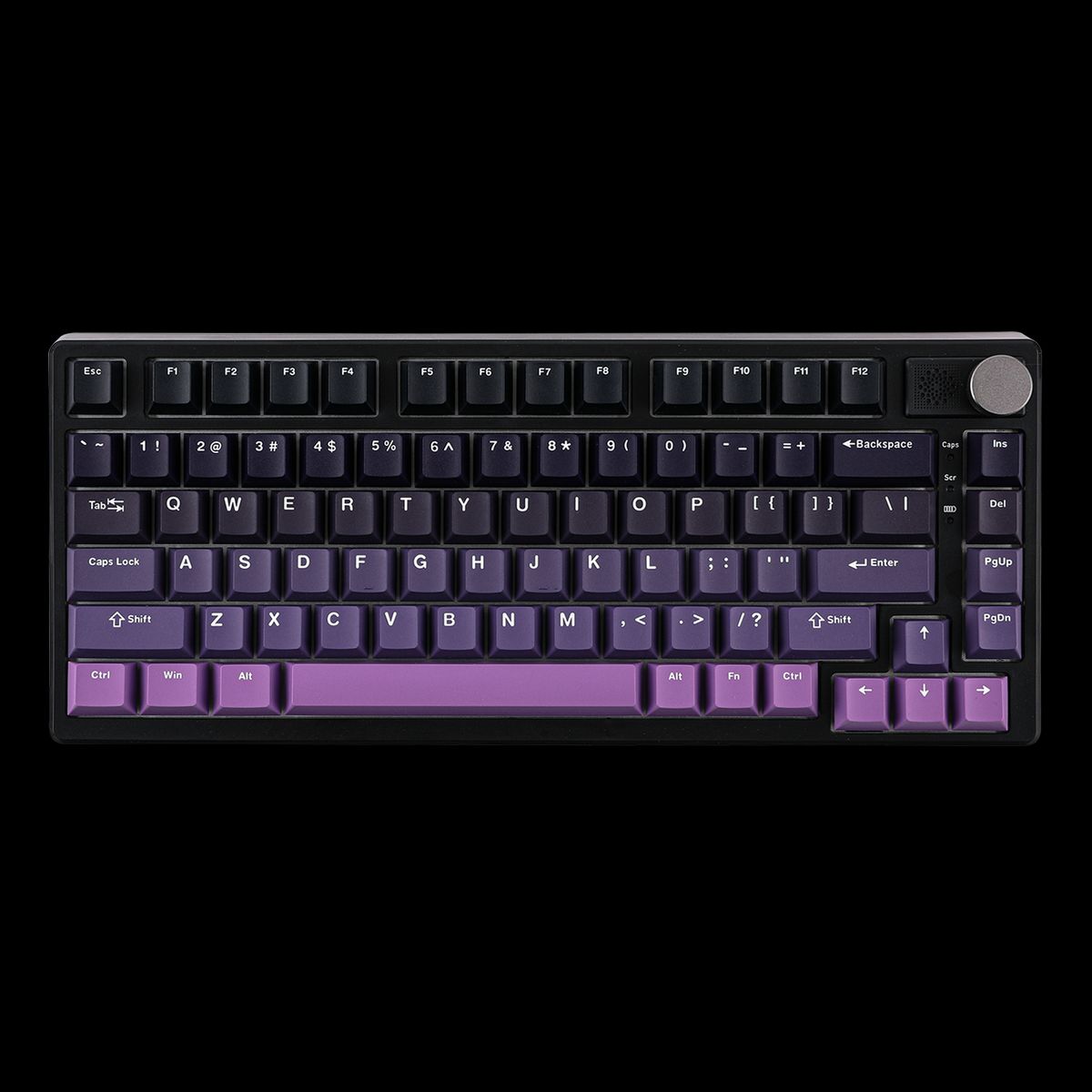

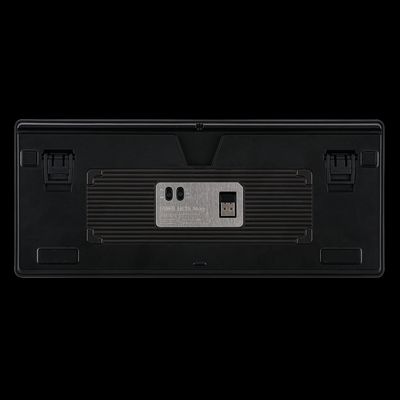

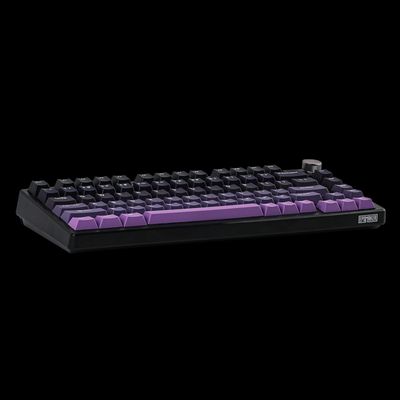

Epomaker HE75 Mag
- 81 keys
- Hot-swap
- Gasket mount
- Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle)
Where to buy
Specifications
- Form factor
- 75%
- Key count
- 81
- Mounting style
- Gasket mount
- Weight
- 1100 g
- Typing angle
- 5°
- Hot-swap
- Yes
- Socket
- Magnetic (Hall-Effect) Socket
- Polling rate
- 8000 Hz
- RGB
- Yes
- QMK
- No
- VIA
- No
- Layouts
- ANSI
- Connectivity
- Wired USB-C, Bluetooth (5.0+), 2.4GHz wireless (dongle)
- Battery
- 4000 mAh
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Mounting styles explained.
Sound on a build is driven by the combination of keyboard chassis, switches, keycaps and stabilizers rather than this component alone.
For a breakdown of how each piece contributes, see Switches 101 and Stabilizers 101.
Force-curve data applies to switches — see the spec tab for the switch this component is paired with.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Hot-swap
Magnetic (Hall-Effect) Socket sockets
Switches can be swapped without soldering.
- Layouts supported
ANSI
Hall-Effect / magnetic-switch 75% keyboard. Hot-swap sockets accept Epomaker / Gateron magnetic (Hall-Effect) switches with south-facing orientation only; NOT compatible with standard MX 3-pin/5-pin mechanical switches. Ships with Gateron Magnetic White switches and 83 PBT double-shot Cherry-profile keycaps. 40-level adjustable actuation from 0.1mm to 4.0mm with Rapid Trigger, Snap Tap (last-input-priority), DKS (Dynamic Key Stroke) and MT (Multi-Trigger) modes — switchable via FN+1/2/3/4 (Comfort / Sensitive / Game / Custom). Tri-mode connectivity: USB-C wired, 2.4GHz dongle, Bluetooth 5.0; 8000Hz polling on USB and 2.4GHz (0.125ms latency), 125Hz / 8ms on BT. 4000mAh battery (up to ~120h backlight-off). Gasket-mount with aluminum alloy plate, ABS case, 1.2mm FR4 PCB and PPRO sandwich foam + silicone bottom pad. Plate-mount stabilizers — NOT compatible with screw-in stabilizers. Interchangeable knob module (programmable knob OR two extra keys). South-facing per-key RGB. Compatible with Mac / Windows / Android. No QMK/VIA — Epomaker proprietary driver software.
Side-by-side comparison
| Spec | AkkoAkko 3061S | AkkoAkko 3061S HE | AkkoAkko 3068 | ||
|---|---|---|---|---|---|
| Form factor | 75% | TKL | 60% | 60% | 65% |
| Keys | 81 | 87 | 61 | 61 | 68 |
| Hot-swap | Yes | No | Yes | Yes | No |
| Connectivity | Wired USB-C / Bluetooth (5.0+) / 2.4GHz wireless (dongle) | — | Wired USB-C | Wired USB-C | Wired USB-C / Bluetooth (5.0+) |
| Score | — | — | — | — | — |
| From | — | $99.00 | — | — | — |
