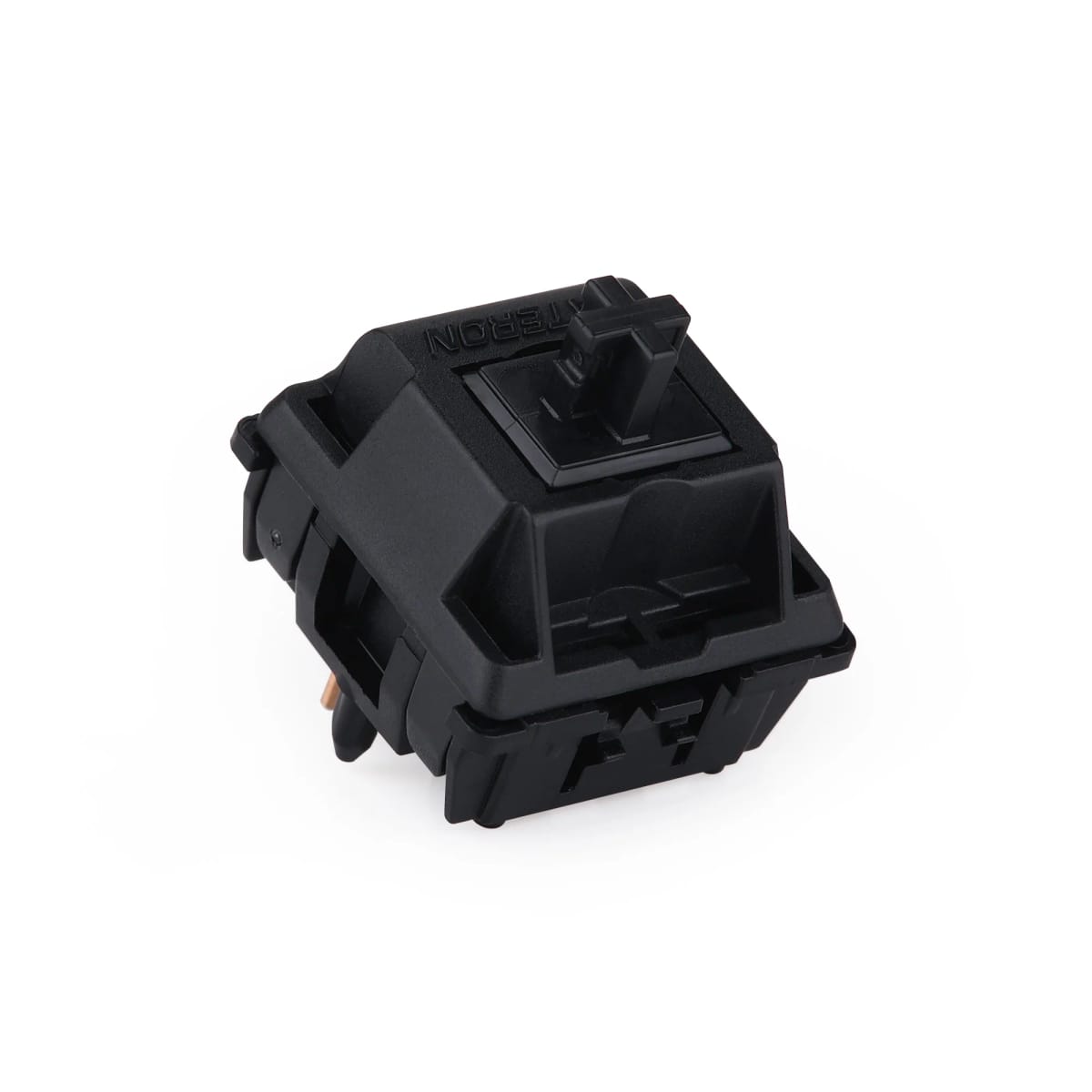

Gateron Oil King
- 55g actuation
- 65g bottom
- 4mm travel
- Factory lubed
Where to buy
Specifications
- Type
- Linear
- Actuation force
- 55 gf
- Bottom-out force
- 65 gf
- Total travel
- 4 mm
- Spring
- 20mm spring
- Pin count
- 5-pin
- Factory lubed
- Yes
- Stem
- MX (Cherry-compatible)
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Switches 101.
Smooth, muted "thock" — factory lube damps spring ping and stem friction.
We're collecting community-contributed sound tests. Meanwhile, Switches 101 explains how switch type, lube and housing material shape sound.
Full force-curve plots aren't ingested yet. Below is the pair we track on every switch — useful for a quick weight sanity check.
Looking for full graphs? Switches 101 → force curves explains how to read them and which weight range suits your typing style.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Fits these sockets
Gateron Hotswap, Kailh Hotswap
Drop-in compatible hot-swap sockets.
- PCB requirement
5-pin PCB socket
Also fits 3-pin sockets after trimming the plastic legs.
- Keycap stem
MX (Cherry-compatible) stem
Works with any keycap set cut for this stem type.

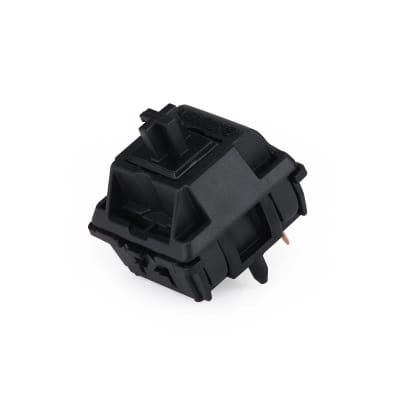

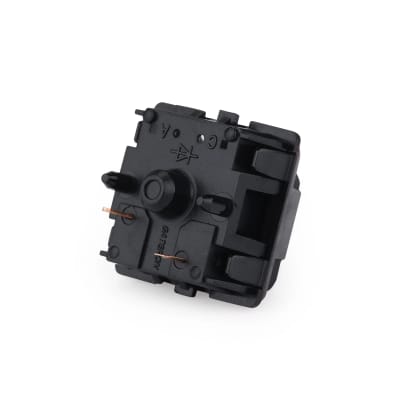

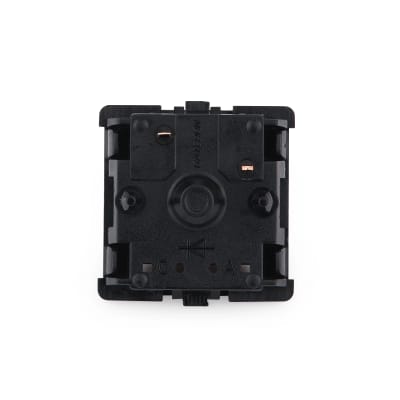

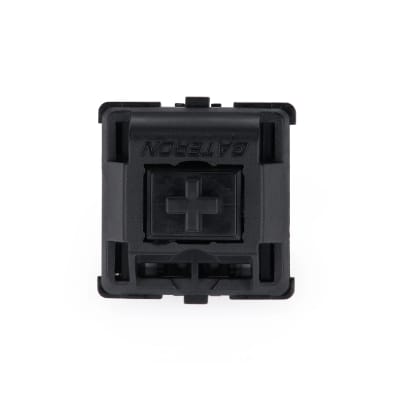

Premium boutique-tier Gateron linear. MX-stem, 5-pin PCB mount. Factory-lubed with smooth, deep sound profile from proprietary INK bottom housing + Nylon PA66 top + POM stem. Compatible with standard MX hotswap PCBs (Gateron, Kailh, Mill-Max sockets).
Side-by-side comparison
| Spec | |||||
|---|---|---|---|---|---|
| Type | Linear | Linear | Linear | Linear | Linear |
| Bottom-out | 65 gf | 56 gf | 40 gf | 48 gf | — |
| Factory lubed | Yes | — | — | — | — |
| Score | — | — | — | — | — |
| From | $0.59 | — | — | — | — |
Need more detail? Open full comparison →
