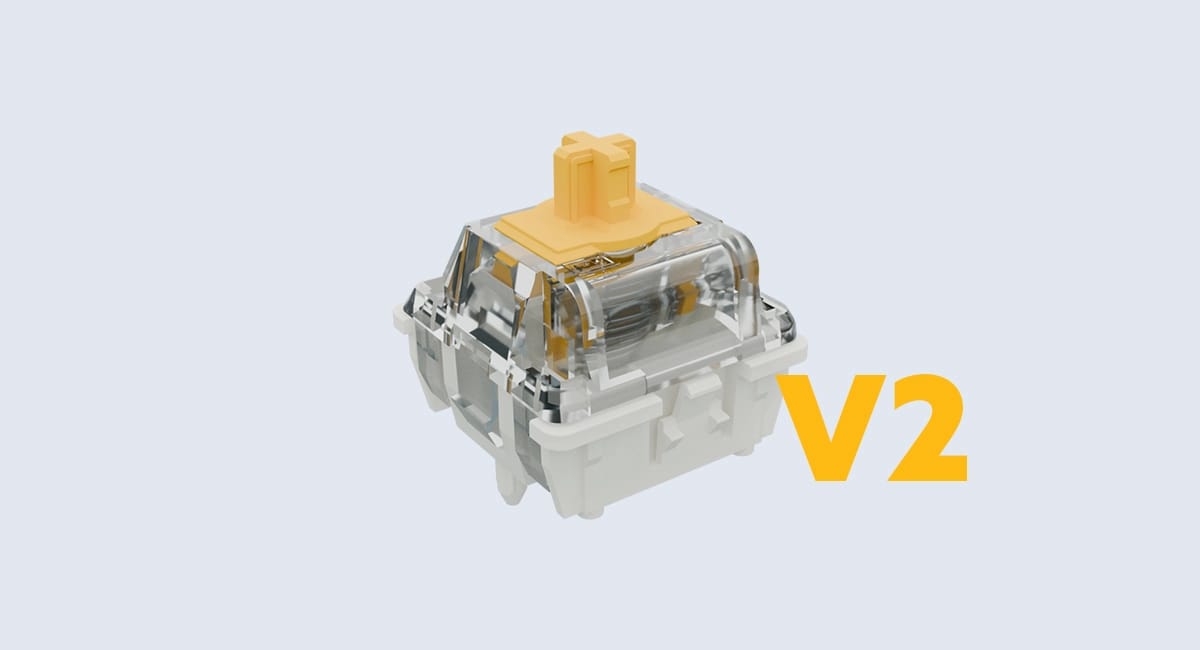

Wooting Lekker Linear45 (L45) V2
- 30g actuation
- 45g bottom
- 4mm travel
- Factory lubed
Where to buy
Specifications
- Type
- Magnetic
- Actuation force
- 30 gf
- Bottom-out force
- 45 gf
- Total travel
- 4 mm
- Spring
- non-magnetic steel
- Pin count
- 2-pin
- Factory lubed
- Yes
- Stem
- MX (Cherry-compatible)
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Switches 101.
Sound profile is driven by stem, spring and housing materials; see Switches 101 for the components-level breakdown.
We're collecting community-contributed sound tests. Meanwhile, Switches 101 explains how switch type, lube and housing material shape sound.
Full force-curve plots aren't ingested yet. Below is the pair we track on every switch — useful for a quick weight sanity check.
Looking for full graphs? Switches 101 → force curves explains how to read them and which weight range suits your typing style.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- PCB requirement
2-pin PCB socket
- Keycap stem
MX (Cherry-compatible) stem
Works with any keycap set cut for this stem type.
Magnetic Hall-effect switch — only compatible with Wooting Lekker-socketed PCBs (Wooting 60HE/60HE+/80HE/Two HE, etc.). Not compatible with standard MX hot-swap sockets.
Side-by-side comparison
| Spec | |||||
|---|---|---|---|---|---|
| Type | Magnetic | Linear | Linear | Linear | Linear |
| Bottom-out | 45 gf | 56 gf | 40 gf | 48 gf | — |
| Factory lubed | Yes | — | — | — | — |
| Score | — | — | — | — | — |
| From | — | — | — | — | — |
Need more detail? Open full comparison →
