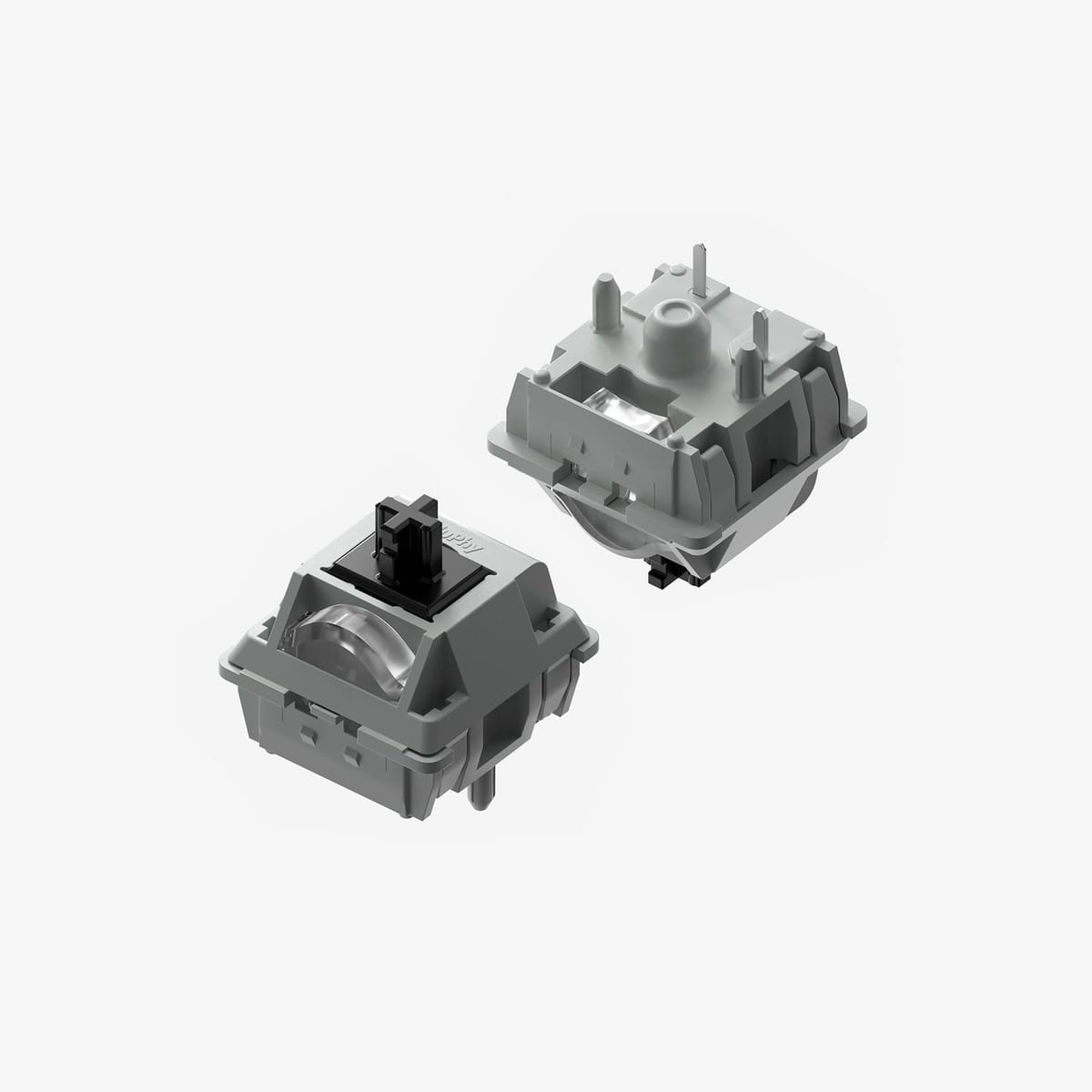

NuPhy Panda Max Switch
- 45g actuation
- 55g bottom
- 3.3mm travel
- Factory lubed
Where to buy
Specifications
- Type
- Tactile
- Actuation force
- 45 gf
- Bottom-out force
- 55 gf
- Pre-travel
- 2.2 mm
- Total travel
- 3.3 mm
- Spring
- 20.5mm single-stage
- Pin count
- 5-pin
- Factory lubed
- Yes
- Stem
- MX (Cherry-compatible)
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Switches 101.
Softer tactile "bump + thock" — the bump is less percussive on lubed stems.
We're collecting community-contributed sound tests. Meanwhile, Switches 101 explains how switch type, lube and housing material shape sound.
Full force-curve plots aren't ingested yet. Below is the pair we track on every switch — useful for a quick weight sanity check.
Looking for full graphs? Switches 101 → force curves explains how to read them and which weight range suits your typing style.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- PCB requirement
5-pin PCB socket
Also fits 3-pin sockets after trimming the plastic legs.
- Keycap stem
MX (Cherry-compatible) stem
Works with any keycap set cut for this stem type.
Full-height MX-stem tactile switch (manufactured by Bsun for NuPhy). Compatible with Cherry MX and MX-style keyboards. Official NuPhy compatibility: Halo75 V2, Halo96 V2, Gem80, Kick75. NOT for low-profile boards (Air60/75/96, Halo65/75/96 low-profile, Field75 etc.).
Side-by-side comparison
| Spec | |||||
|---|---|---|---|---|---|
| Type | Tactile | Linear | Linear | Linear | Linear |
| Bottom-out | 55 gf | 56 gf | 40 gf | 48 gf | — |
| Factory lubed | Yes | — | — | — | — |
| Score | — | — | — | — | — |
| From | — | — | — | — | — |
