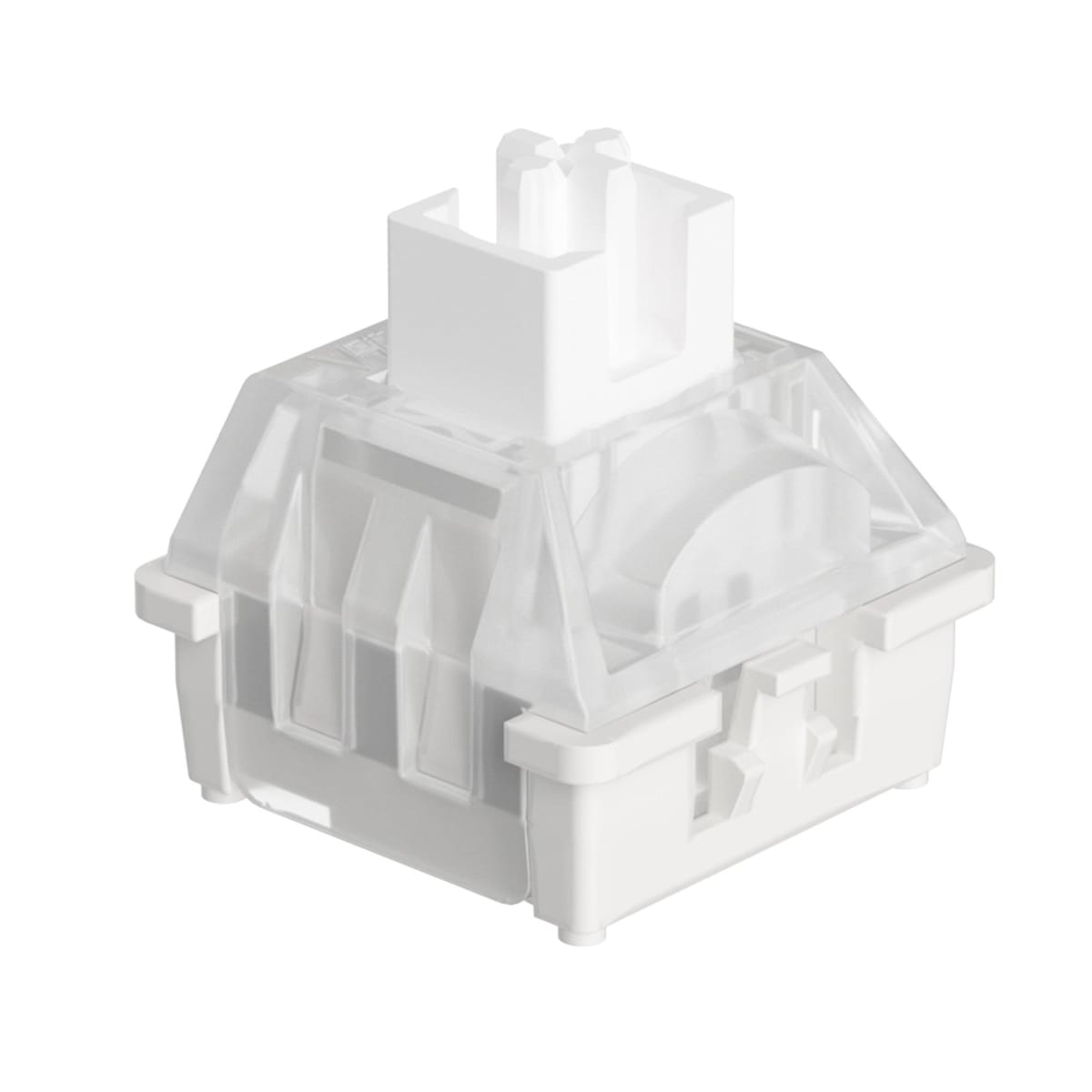

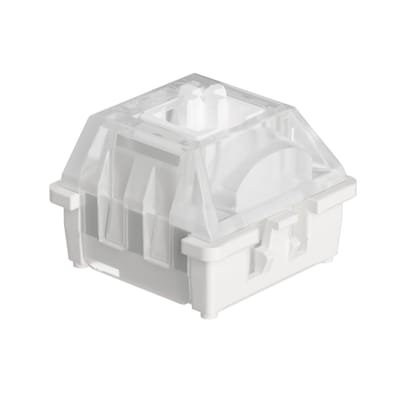

DrunkDeer RAESHA Magnetic Switch
- 30g actuation
- 60g bottom
- 3.85mm travel
- Factory lubed
Where to buy
2 vendorssorted by per-unit pricelast checked 2d ago
Prices from partner vendors. Some are affiliate links — we may earn a commission at no extra cost to you. Learn more.
35-pack1 offer
from $0.37 / unit- AmazonChecked 67h agoOut of stockNotify$12.99Check at Amazon$0.37 / unit
36-pack1 offer
from $0.74 / unit- Amazon— SilentChecked 67h agoOut of stockNotify$26.99Check at Amazon$0.74 / unit
Specifications
- Type
- Magnetic
- Actuation force
- 30 gf
- Bottom-out force
- 60 gf
- Total travel
- 3.85 mm
- Spring
- 12.5mm
- Pin count
- 2-pin
- Operating life
- 100,000,000 cycles
- Factory lubed
- Yes
- Stem
- MX (Cherry-compatible)
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Switches 101.
Sound profile is driven by stem, spring and housing materials; see Switches 101 for the components-level breakdown.
We're collecting community-contributed sound tests. Meanwhile, Switches 101 explains how switch type, lube and housing material shape sound.
Full force-curve plots aren't ingested yet. Below is the pair we track on every switch — useful for a quick weight sanity check.
Looking for full graphs? Switches 101 → force curves explains how to read them and which weight range suits your typing style.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- PCB requirement
2-pin PCB socket
- Keycap stem
MX (Cherry-compatible) stem
Works with any keycap set cut for this stem type.
For DrunkDeer G75/G65/G60. NOT for A75 Master/A75 Ultra. A75/A75 Pro and other models: confirm with customer service.
Side-by-side comparison
| Spec | |||||
|---|---|---|---|---|---|
| Type | Magnetic | Linear | Linear | Linear | Linear |
| Bottom-out | 60 gf | 56 gf | 40 gf | 48 gf | — |
| Factory lubed | Yes | — | — | — | — |
| Score | — | — | — | — | — |
| From | — | — | — | — | — |
Need more detail? Open full comparison →
