Wooting 80HE TenZ Takeover
- 87 keys
- Hot-swap
- Gasket mount
- Wired USB-C
Where to buy
Specifications
- Form factor
- TKL
- Key count
- 87
- Mounting style
- Gasket mount
- Weight
- 849 g
- Hot-swap
- Yes
- Socket
- Magnetic (Hall-Effect) Socket
- Polling rate
- 8000 Hz
- RGB
- Yes
- QMK
- No
- VIA
- No
- Layouts
- ANSI
- Connectivity
- Wired USB-C
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Mounting styles explained.
Sound on a build is driven by the combination of keyboard chassis, switches, keycaps and stabilizers rather than this component alone.
For a breakdown of how each piece contributes, see Switches 101 and Stabilizers 101.
Force-curve data applies to switches — see the spec tab for the switch this component is paired with.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Hot-swap
Magnetic (Hall-Effect) Socket sockets
Switches can be swapped without soldering.
- Layouts supported
ANSI

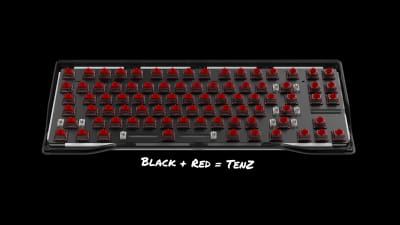

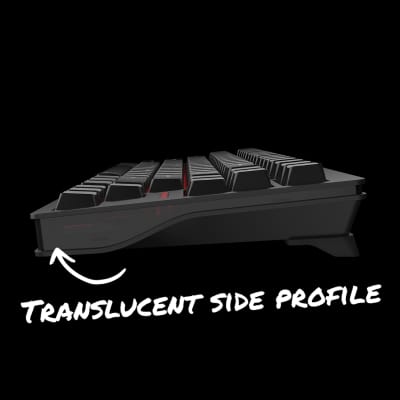

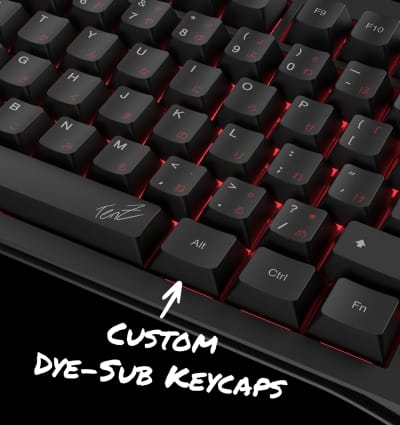

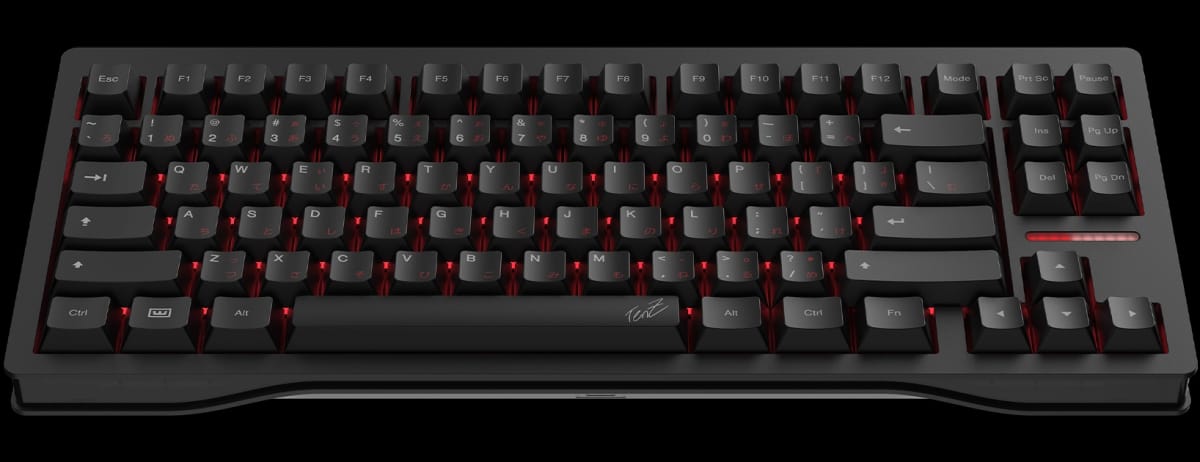

Limited-edition (20,000 units) Hall-effect analog gaming keyboard co-designed with VALORANT pro TenZ. Shares the Wooting 80HE PCBA but tuned to TenZ's preferences: TenZ TikkenZ switches (Lekker Tikken variant with lighter 30–45cN / longer 21.3mm spring, black/transparent/red colourway), FR4 switch plate, gasket-mount construction, super-lubed screw-in stabilizers, foam-filled spacebar, and silicone sandwich-pad sound dampening. ABS plastic case in black/dark-translucent finish. Black PBT dye-sub OEM-profile keycaps with white ANSI legends and red Kana legends. ANSI layout only (no ISO/JIS option). Proprietary magnetic Hall-effect socket — NOT compatible with standard MX hot-swap switches; ships with TenZ TikkenZ switches preinstalled plus 3 spares. True 8kHz wired polling with synchronized 8kHz key scan (~0.125ms input latency, Tachyon Mode). 0.1–4.0mm per-key adjustable actuation with Rapid Trigger, Rappy Snappy, Snappy Tappy (SOCD), DKS, Mod Tap, analog controller input. Configured via Wootility web/app (not QMK/VIA). Wired USB-C only (2m black/red nylon braided cable, USB-C to A adapter included). Ships with 6° and 10° adjustable feet. 4-year warranty (excluding LEDs).
