Specifications
- Form factor
- 60%
- Key count
- 61
- Mounting style
- Tray mount
- Weight
- 182 g
- Hot-swap
- Yes
- Socket
- Magnetic (Hall-Effect) Socket
- RGB
- Yes
- QMK
- No
- VIA
- No
- Layouts
- ANSI
- Connectivity
- Wired USB-C
Not sure about a term? Hover the dotted-underlined values for a quick definition, or read Mounting styles explained.
Sound on a build is driven by the combination of keyboard chassis, switches, keycaps and stabilizers rather than this component alone.
For a breakdown of how each piece contributes, see Switches 101 and Stabilizers 101.
Force-curve data applies to switches — see the spec tab for the switch this component is paired with.
No community review summary has been published for this product yet.
We summarize reviews from Amazon, Reddit, ThereminGoat, Geekhack and YouTube once enough coverage is collected. In the meantime, our buying guides cover which specs to look for.
Compatibility
- Hot-swap
Magnetic (Hall-Effect) Socket sockets
Switches can be swapped without soldering.
- Layouts supported
ANSI

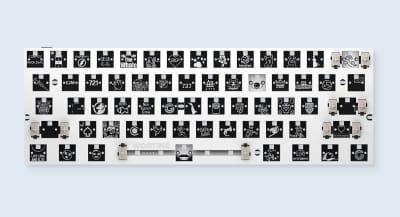

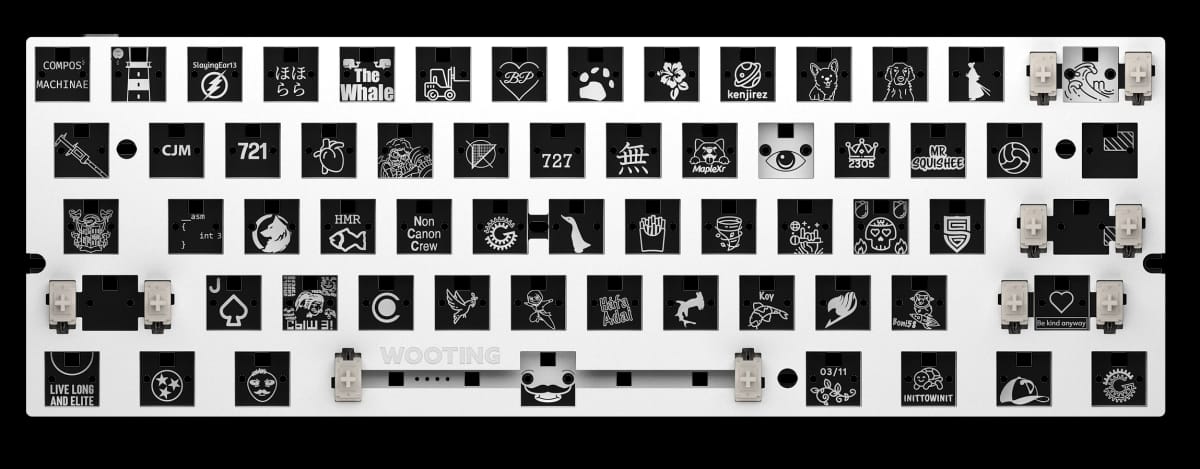

Barebones standalone PCBA variant of the Wooting 60HE+ — sold WITHOUT case, switches, or keycaps. Universal GH60 60% form factor: drops into the Wooting Alumaze60, the stock 60HE case, or third-party 60% aluminum cases with tray-mount or friction-fit. Updated PCBA with screw-in stabilizers preinstalled. Polycarbonate switch plate (upgrade vs the steel plate of the assembled 60HE+). Includes EPDM dampening foam layer, Poron sandwich pad, USB-C to USB-A 2m nylon braided cable, Wooting switch+keycap puller, 7 spare M2x4mm PCBA screws, and 10 silicone stand-off protection stickers. Wooting Lekker magnetic Hall-effect sockets — accepts Wooting Lekker L60/L45 switches ONLY (NOT standard MX). Wired USB-C, configured via Wootility software (no QMK/VIA). Per-key RGB backlight. Designed for keyboard enthusiasts who want to build their own 60HE+ with a custom case.
Side-by-side comparison
| Spec | AkkoAkko 3061S | AkkoAkko 3061S HE | AkkoAkko 3068 | ||
|---|---|---|---|---|---|
| Form factor | 60% | TKL | 60% | 60% | 65% |
| Keys | 61 | 87 | 61 | 61 | 68 |
| Hot-swap | Yes | No | Yes | Yes | No |
| Connectivity | Wired USB-C | — | Wired USB-C | Wired USB-C | Wired USB-C / Bluetooth (5.0+) |
| Score | — | — | — | — | — |
| From | — | $99.00 | — | — | — |
Need more detail? Open full comparison →
